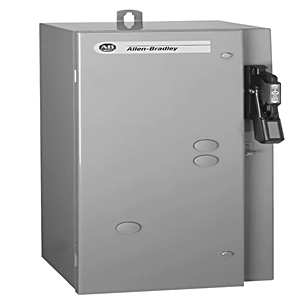

| Type | 513-BHB-A2F-3-40 |
| Manufacturer | Allen Bradley |
| Current Product Selection Availability (may change based on options selected below) |
Catalog is configured at order entry |
| Please Note |
|
| Factory or User Assembled? |
Factory Assembled |
| Line Voltage |
460V 60Hz |
| NEMA Size |
NEMA 1 |
| Enclosure |
Type 3R, 7 & 9 Bolted - Enclosure Code "H" |
| Control Voltage |
480V 60Hz |
| Horsepower Code |
7.5 HP (Motor Protection) |
| Circuit Breaker Type |
Instantaneous Trip, Standard |
| Overload Relay |
E100 Solid State Overload |
| Full Load Amps |
E100, Trip Class 20, 3.2-16A |
| Factory Installed Modifications |
HAND-OFF-AUTO Selector Switch |
| Enclosure Size [length x width x depth] |
Unknown |
| Load Voltage |
115…575 (V) |
| Continuous Current Rating |
27 (A) |
| Service Limit Current Rating |
32 (A) |
| Maximum Hp Rating (Non-plugging and non-jogging duty) Single-Phase |
- (Hp) |
| Maximum Hp Rating (Non-plugging and non-jogging duty) Three-Phase |
10 (Hp) |
| Maximum Circuit Closing Inrush Current, Peak Including Offset |
288 (A) |
| Mechanical Life |
10 (Millions of Operations) |
| Maximum Number of Auxiliary Contacts |
8 |
| Pick-up Operating Time (Average) |
22 (ms) |
| Drop-out Operating Time (Average) |
14 (ms) |
| Wire size for Power Terminals |
14…8 (AWG) |
| Required Torque |
20 (lb•in) |
| Type of Power Terminal |
Saddle or Wire Clamps |
| Operating Position |
Vertical |
| Temperature Range |
-13…+131°F(-25…+55°C) |
| Altitude |
10,000 (feet before derating) |
| Corrosion-Resistance |
All metal parts are treated for corrosion-resistance |
| Product Type |
Contactor |
| Catalog Number |
500F-BOD930 |
| Description |
500F, 500FC NEMA AC/DC Contactor,Motor Loads,Feed-Through ,SIZE 1, Open, 115-120V 60Hz, 3 Power Poles, Yes , 27 , 110/120V 50/60 Hz , |
| Quantity |
1 |
