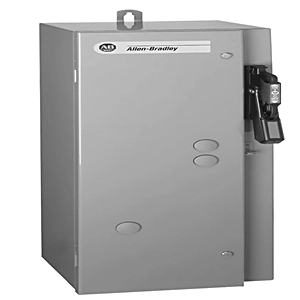

| Type | 513-CHA-6XP-41-901 |
| Manufacturer | Allen Bradley |
| Current Product Selection Availability (may change based on options selected below) |
Catalog is configured at order entry |
| Please Note |
|
| Factory or User Assembled? |
Factory Assembled |
| Line Voltage |
230V 60Hz |
| Horsepower |
10 HP |
| NEMA Size |
NEMA 2 |
| Enclosure |
Type 3R, 7 & 9 Bolted - Enclosure Code "H" |
| Control Voltage |
120V 60Hz |
| Horsepower Code |
10 HP (Motor Protection) |
| Circuit Breaker Type |
Instantaneous Trip, Standard |
| Overload Relay |
Eutectic Alloy |
| Full Load Amps |
Eutectic Overload |
| Factory Installed Modifications |
|
| Enclosure Size [length x width x depth] |
Unknown |
| Continuous VA (Transformer Rating) |
130 |
| Load Voltage |
115…575 (V) |
| Continuous Current Rating |
45 (A) |
| Service Limit Current Rating |
52 (A) |
| Maximum Hp Rating (Non-plugging and non-jogging duty) Single-Phase |
7-1/2 (Hp) |
| Maximum Hp Rating (Non-plugging and non-jogging duty) Three-Phase |
15 (Hp) |
| Maximum Circuit Closing Inrush Current, Peak Including Offset |
483 (A) |
| Mechanical Life |
10 (Millions of Operations) |
| Maximum Number of Auxiliary Contacts |
8 |
| Pick-up Operating Time (Average) |
27 (ms) |
| Drop-out Operating Time (Average) |
1320 (ms) |
| Wire size for Power Terminals |
14…4 (AWG) |
| Required Torque |
45 (lb•in) |
| Type of Power Terminal |
Pressure Terminals |
| Operating Position |
Vertical |
| Temperature Range |
-13…+149°F(-25…+65°C) |
| Altitude |
10,000 (feet before derating) |
| Corrosion-Resistance |
All metal parts are treated for corrosion-resistance |
| Product Type |
Contactor |
| Catalog Number |
500F-COD930 |
| Description |
500F, 500FC NEMA AC/DC Contactor,Motor Loads,Feed-Through ,SIZE 2, Open, 115-120V 60Hz, 3 Power Poles, Yes , 45 , 110/120V 50/60 Hz , |
| Quantity |
1 |
| Additional Information |
|
| Product Type |
Overload |
| Catalog Number |
592-EUTC |
| Description |
NEMA Eutectic Alloy Overload Relay, Manual Reset, 62A, N.C. Contact |
| Quantity |
1 |
| Product Type |
Transformer |
| Catalog Number |
1497-AD80 |
| Description |
Control Circuit Transformer 80 VA, 230...240V 60Hz Prim. / 120V 60Hz Sec. |
| Quantity |
1 |
| Additional Information |
|
