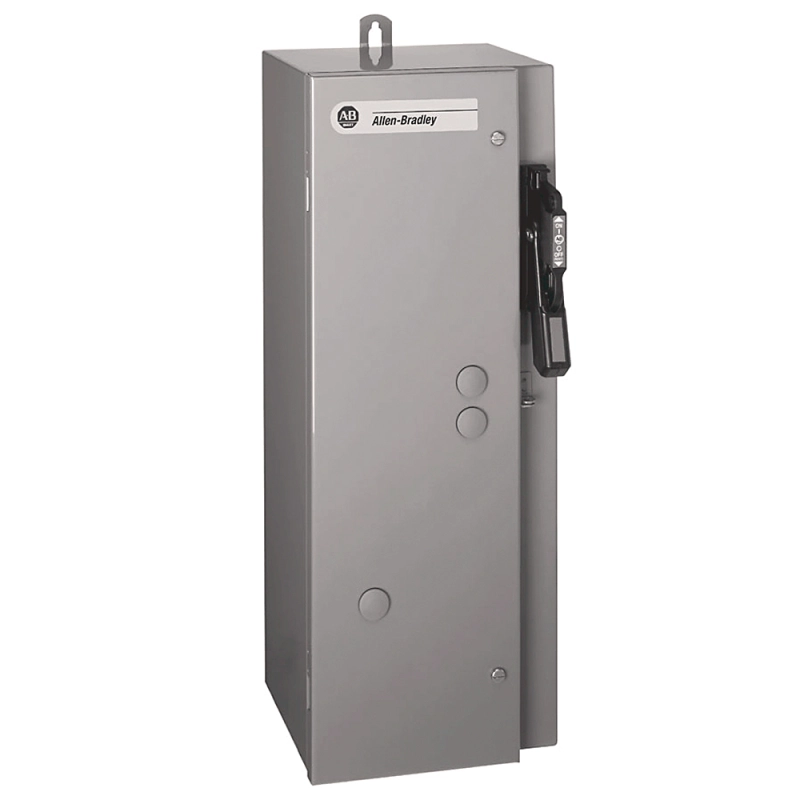

| Type | 513-EAB-A2M-3-4R-6P-49-901 |
| Manufacturer | Allen Bradley |
| Current Product Selection Availability (may change based on options selected below) |
Catalog is configured at order entry |
| Please Note |
|
| Factory or User Assembled? |
Factory Assembled |
| Line Voltage |
460V 60Hz |
| NEMA Size |
NEMA 4 |
| Enclosure |
Type 1 - Enclosure Code "A" |
| Control Voltage |
120V 60Hz |
| Horsepower Code |
75 HP (Motor Protection) |
| Circuit Breaker Type |
Instantaneous Trip, Standard |
| Overload Relay |
E100 Solid State Overload |
| Full Load Amps |
E100, Trip Class 20, 30-150A |
| Factory Installed Modifications |
|
| Enclosure Size [length x width x depth] |
30 x 20 x 10 in. |
| Continuous VA (Transformer Rating) |
250 |
| Load Voltage |
115…575 (V) |
| Continuous Current Rating |
135 (A) |
| Service Limit Current Rating |
156 (A) |
| Maximum Hp Rating (Non-plugging and non-jogging duty) Single-Phase |
- (Hp) |
| Maximum Hp Rating (Non-plugging and non-jogging duty) Three-Phase |
75 (Hp) |
| Maximum Circuit Closing Inrush Current, Peak Including Offset |
1581 (A) |
| Mechanical Life |
5 (Millions of Operations) |
| Maximum Number of Auxiliary Contacts |
8 |
| Pick-up Operating Time (Average) |
2 (ms) |
| Drop-out Operating Time (Average) |
20 (ms) |
| Wire size for Power Terminals |
6…4/0 (AWG) |
| Required Torque |
275 (lb•in) |
| Type of Power Terminal |
Pressure Terminals |
| Operating Position |
Vertical |
| Temperature Range |
-13…+131°F(-25…+55°C) |
| Altitude |
10,000 (feet before derating) |
| Corrosion-Resistance |
All metal parts are treated for corrosion-resistance |
| Product Type |
Contactor |
| Catalog Number |
500F-EOD930 |
| Description |
500F, 500FC NEMA AC/DC Contactor,Motor Loads,Feed-Through ,SIZE 4, Open, 115-120V 60Hz, 3 Power Poles, Yes , 135 , 110/120V 50/60 Hz , |
| Quantity |
1 |
| Additional Information |
|
| Product Type |
Overload |
| Catalog Number |
592-EFJZ |
| Description |
Bulletin 592, E1 Plus Solid State Overload Relay, Automatic / Manual Reset, Mounts to NEMA Contactor |
| Quantity |
1 |
| Additional Information |
|
| Product Type |
Pilot Lights |
| Catalog Number |
599-PLF-120R |
| Description |
Pilot Light, Red, LED, 30mm, Type 4/12, 120V |
| Quantity |
1 |
| Additional Information |
|
| Product Type |
Operators |
| Catalog Number |
599-SSF-HOA |
| Description |
HAND-AUTO Selector Switch; 30 mm; Type 4/12 |
| Quantity |
1 |
| Additional Information |
|
