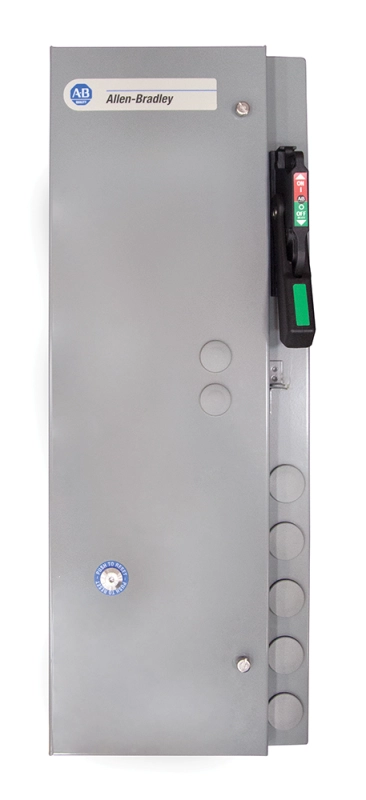

| Type | 513-ECBD-49 |
| Manufacturer | Allen Bradley |
| Current Product Selection Availability (may change based on options selected below) |
Catalog is configured at order entry |
| Please Note |
|
| Factory or User Assembled? |
Factory Assembled |
| Line Voltage |
460V 60Hz |
| NEMA Size |
NEMA 4 |
| Enclosure |
Type 4/4X - Enclosure Code "C" |
| Control Voltage |
120V 60Hz |
| Horsepower Code |
75 HP (Motor Protection) |
| Circuit Breaker Type |
Instantaneous Trip, Standard |
| Overload Relay |
Eutectic Alloy |
| Full Load Amps |
Eutectic Overload |
| Enclosure Size [length x width x depth] |
30 x 20 x 10 in. |
| Load Voltage |
115…575 (V) |
| Continuous Current Rating |
135 (A) |
| Service Limit Current Rating |
156 (A) |
| Maximum Hp Rating (Non-plugging and non-jogging duty) Single-Phase |
- (Hp) |
| Maximum Hp Rating (Non-plugging and non-jogging duty) Three-Phase |
75 (Hp) |
| Maximum Circuit Closing Inrush Current, Peak Including Offset |
1581 (A) |
| Mechanical Life |
5 (Millions of Operations) |
| Maximum Number of Auxiliary Contacts |
8 |
| Pick-up Operating Time (Average) |
2 (ms) |
| Drop-out Operating Time (Average) |
20 (ms) |
| Wire size for Power Terminals |
6…4/0 (AWG) |
| Required Torque |
275 (lb•in) |
| Type of Power Terminal |
Pressure Terminals |
| Operating Position |
Vertical |
| Temperature Range |
-13…+149°F(-25…+65°C) |
| Altitude |
10,000 (feet before derating) |
| Corrosion-Resistance |
All metal parts are treated for corrosion-resistance |
| Product Type |
Contactor |
| Catalog Number |
500F-EOD930 |
| Description |
500F, 500FC NEMA AC/DC Contactor,Motor Loads,Feed-Through ,SIZE 4, Open, 115-120V 60Hz, 3 Power Poles, Yes , 135 , 110/120V 50/60 Hz , |
| Quantity |
1 |
| Additional Information |
|
| Product Type |
Overload |
| Catalog Number |
592-EUTE |
| Description |
NEMA Eutectic Alloy Overload Relay, Manual Reset, 165A, N.C. Contact |
| Quantity |
1 |
